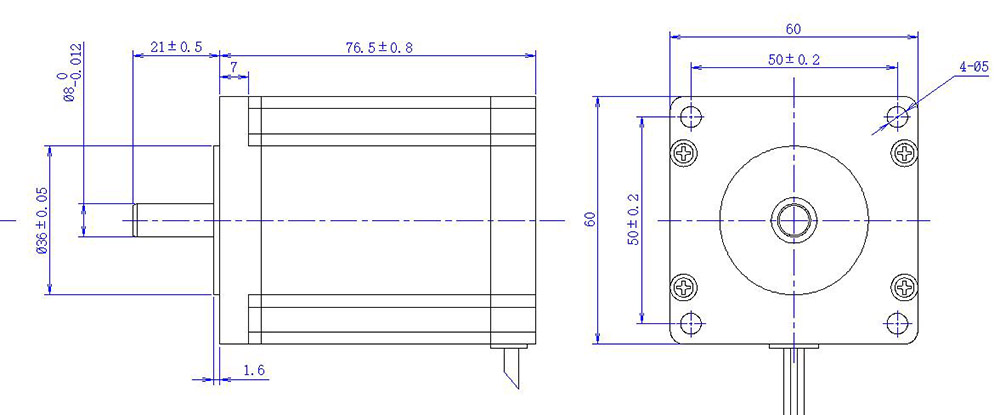

NEMA24T stepper motor is a standard hybrid stepper motor, the step angle is 1.8°， but it is a 3-phase one.

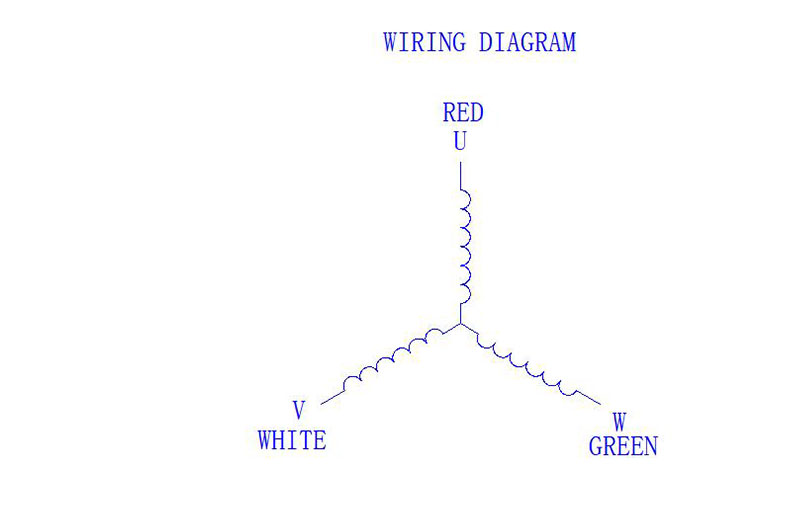

| STEP ANGLE | 1.2°±5% |
| NO. OF PHASES | 3 |
| RATED VOLTAGE | 3.0 V |
| RATED CURRENT | 5.0 A |
| RESISTANCE | 0.6 ohm±0.15 AT 25° |
| INDUCTANCE | 2.3 mH±20% AT 1kHz, 1Vrms |
| HOLDING TORQUE | 1.5 N.m(211.5 oz.in)TYP. |
| RUNNING TORQUE(AT --PPS) | --V.DC, --A/PHASE |
| DIELECTRIC STRENGTH | 500V A.C/MIN. |
| INSULATION RESISTANCE | 100MΩ+/MIN. |
| INSULATION CLASS | CLASS B |
| TEMPERATURE RISE | 80K MAX. |
| ROTOR INERTIA | 780 g.cm²(4.29 oz.in²) |
| WEIGHT | APPROX. 1250g(437.5 oz) |
| ALLOWABLE THRUST LOAD | 15N |
| ALLOWABLE RADIAL LOAD | 75N(ON THE SHAFT END) |
| OPERATION AMBIENT TEMP. | ‘-20℃---+50℃ |
| OPERATION AMBIENT HUM. | 15%----90% |
| LIFE | 5000小时 |
SPEED VS TORQUE CURVE
MODEL:HEM-23C6403
LOT NO.:181013
| VOLTAGE | 24V.D.C | ○ | SUPPLY | WINDING | |
| CURRENT | 4.5A/相位 | ○ | PEAK | AVE | |
| EXCITATION | |||||
| DRIVE CIRCUIT | I DRIVE-4 | UNIPOLAR | # | BIPOLAR | |
| INERTIA LOAD | --g-cm2 |
