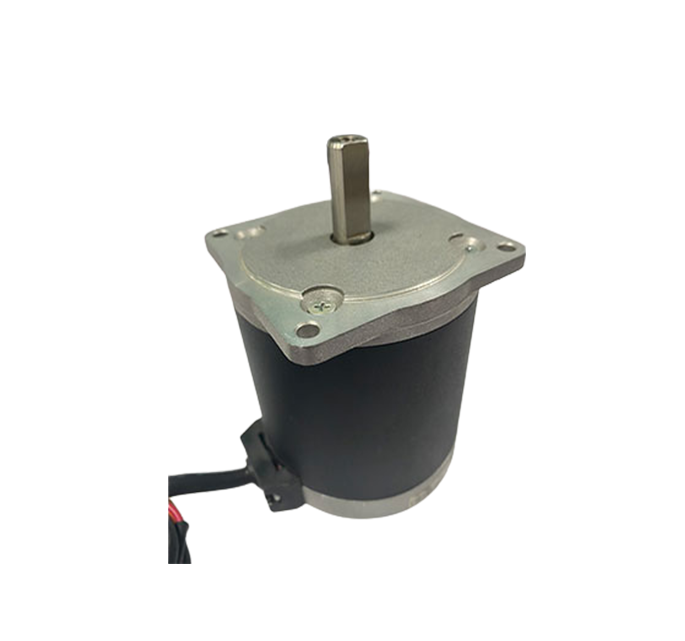

NEMA 23 ROUND STEPPER MOTOR

Unlike the NEMA23 square stepper motor, the NEMA23 round stepper motor is round one, and the size is 56.4*56.4.

Contact us

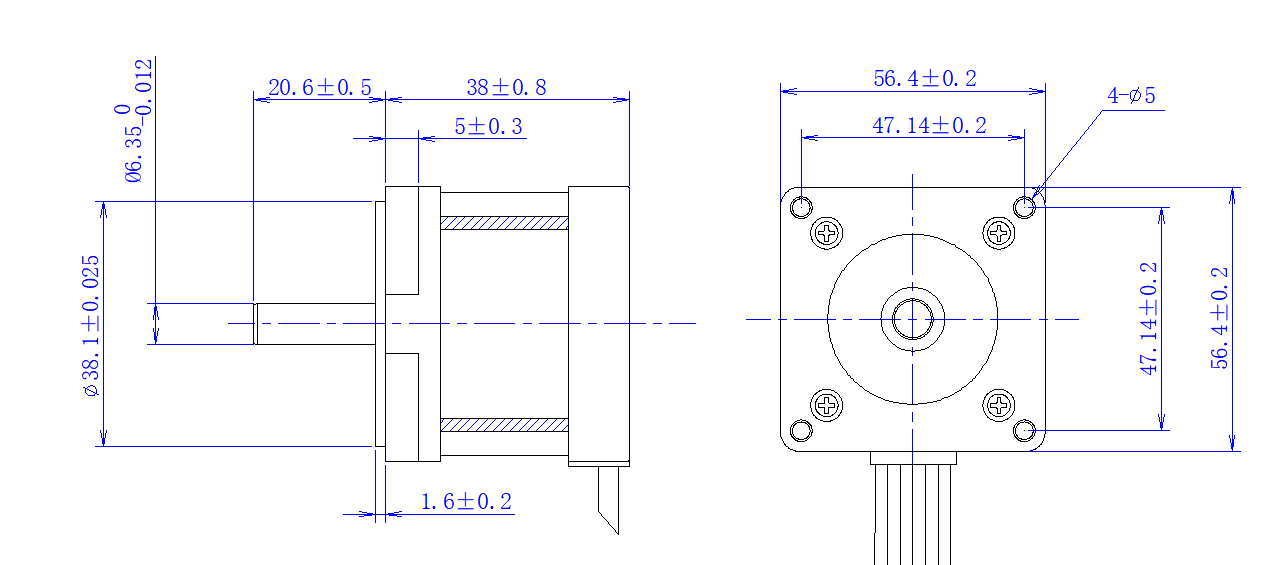

NEMA 23 ROUND STEPPER MOTOR BODY SIZE


NEMA 23 ROUND STEPPER MOTOR CHARACTERISTIC PARAMETER

STEP ANGLE1.8°±5%
NO. OF PHASES2
RATED VOLTAGE2.24 V
RATED CURRENT1.6A
RESISTANCE1.4 ohm±10%   AT 25°
INDUCTANCE1.35mH±20%    AT 1kHz, 1Vrms
HOLDING TORQUE0.26 N.m(3.5 oz.in)TYP.
RUNNING TORQUE(AT --PPS)--V.DC, --A/PHASE
DIELECTRIC STRENGTH500V A.C/MIN.
INSULATION RESISTANCE100MΩ+/MIN.
INSULATION CLASSCLASS B
TEMPERATURE RISE80K MAX.
ROTOR INERTIA70 g.cm²(0.39 oz.in²)
WEIGHTAPPROX. 340g(11.9oz)
ALLOWABLE THRUST LOAD15N
ALLOWABLE RADIAL LOAD75N(ON THE SHAFT END)
OPERATION AMBIENT TEMP.‘-20℃---+50℃
OPERATION AMBIENT HUM.15%----90%
LIFE5000HOURS

NEMA 23 ROUND STEPPER MOTOR TORQUE CURVE

SPEED VS TORQUE CURVE

MODEL: HEM-16D1401

LOT NO.: 2021-10-21

VOLTAGE24V.D.CSUPPLY
WINDING
CURRENT1.6A/PHASEPEAK
AVE
EXCITATIONFull step



DRIVE CIRCUITHDSD2A8
UNIPOLAR#BIPOLAR
INERTIA LOAD10g-cm2




NEMA 23 ROUND STEPPER MOTOR WIRING
