16 mm size coreless Brushless DC Motors from our coreless brushless motor factory can avoid the pulsation of air gap magnetic induction caused by uneven magnetic resistance in the teeth.
It can eliminate the pulse loss in the armature core and the surface loss on the main pole surface.
| Item | Unit | φ16 | |
| HEM-6CL18-24 | HEM-6CL40-24 | ||
| Rated Parameter Value | |||
| Rated Voltage | VDC | 24 | 24 |
| Rated Speed | W | 18 | 40 |
| Rated Current(max.continuous) | rpm | 26129 | 35920 |
| Number of pole pairs | 1 | 1 | |
| Number of phases | 3 | 3 | |
| Rated Torque(max.continuous) | mN.m | 6 | 11 |
| Rated Power | A | 0.93 | 2.0 |
| No Load speed | rpm | 30000 | 40000 |
| No Load Current | mA | 80 | 130 |
| Stall Torque | mN.m | 49.7 | 104.3 |
| Stall Current | A | 6.7 | 18.5 |
| Max.Efficiency | % | 79 | 84 |
| Resistance | Ω | 3.6 | 1.3 |
| lnductance | mH | 0.17 | 0.07 |
| Back-EMF | mV/rpm | 0.79 | 0.6 |
| Torque constant | mN.m/A | 7.55 | 5.69 |
| Speed constant | rpm/V | 1265 | 1678 |
| Speed constant | A/mN.m | 0.132 | 0.176 |
| Speed/Torque gradient | rpm/mN.m | 603.4 | 383.5 |
| Mechanical time constant | ms | 9.7 | 9.7 |
| Rotor inertia | g.cm² | 0.95 | 1.2 |

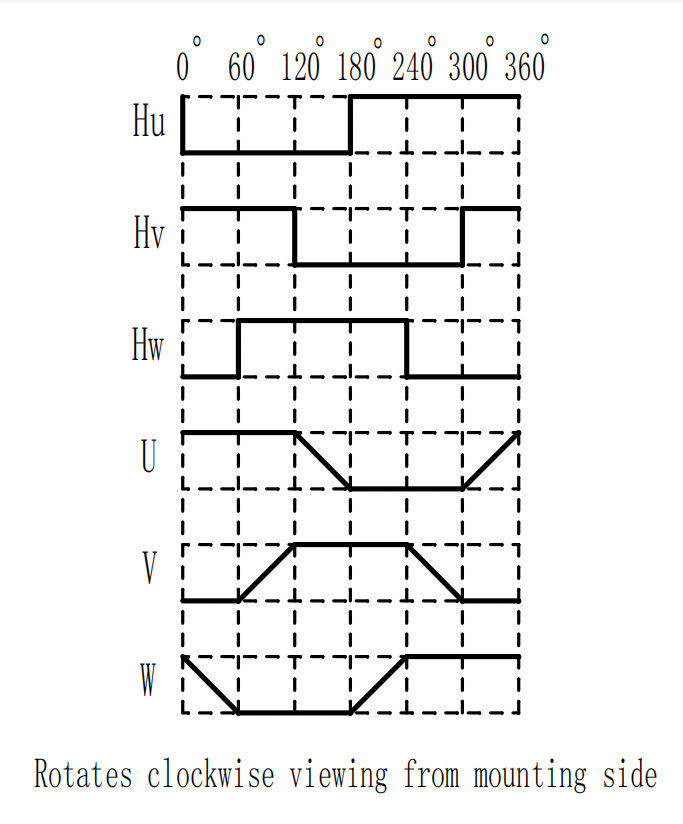

| Sensors | HALL | HALL | |
| Bearing | Ball Bearing | Ball Bearing | |
| lnsulation Class | E | E | |
| Protect class | IP40 | IP40 | |
| Operating tempreture | ℃ | -20---50 | -20---50 |
| Storage tempreture | ℃ | -20---70 | -20---70 |
| Operating Humidity | ≤85%RH(无结露) | ≤85%RH(无结露) | |
| Mass | g | 41 | 52 |

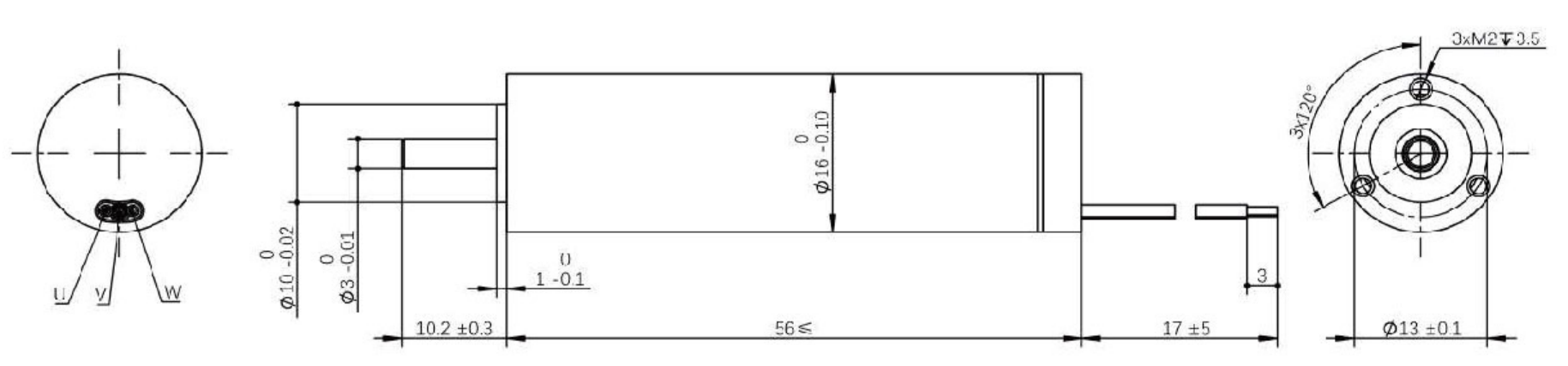

| Length | mm | 45 | 56 |
