  • NEMA 17 Brushless DC motor
  • NEMA 17 Brushless DC motor

NEMA 17 Brushless DC motor

Contact us

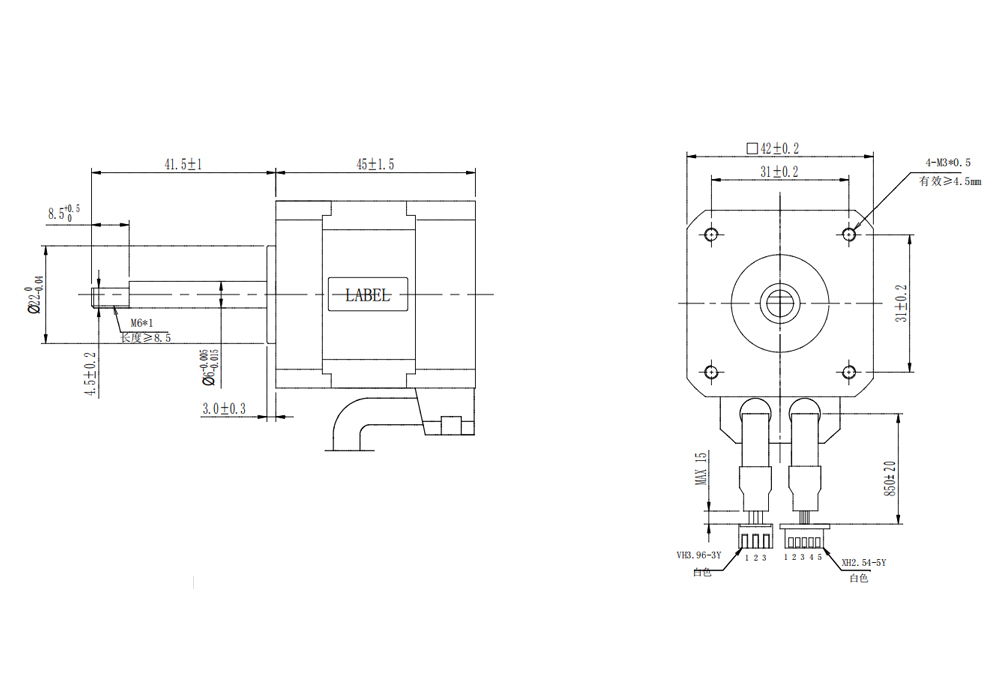

NEMA 17 Brushless DC motor body size


NEMA 17 Brushless DC motor characteristic parameters


nominal voltage(VDC)

24

rated power(W)

30
length(mm)45

pole pair

4

rated torque(Nm)

0.1

rated current(A)

1.7

rated speed(RPM)

3000

no-load speed(RPM)

4200

weight(kg)

0.25

sensor

Hall

work environment(℃)

-20°~ +80°

storage condition(℃)

+5 ~ +35

operating humidity(RH)

15%-90%

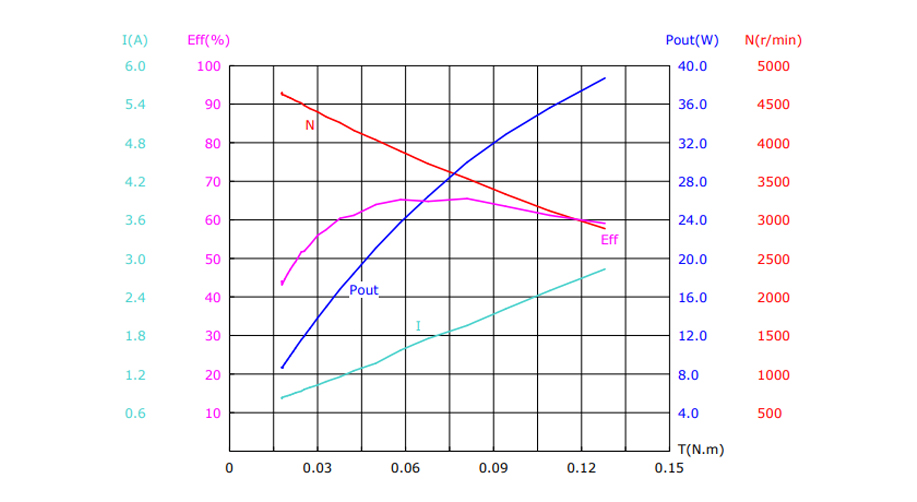

NEMA 17 brushless DC motor torque curve

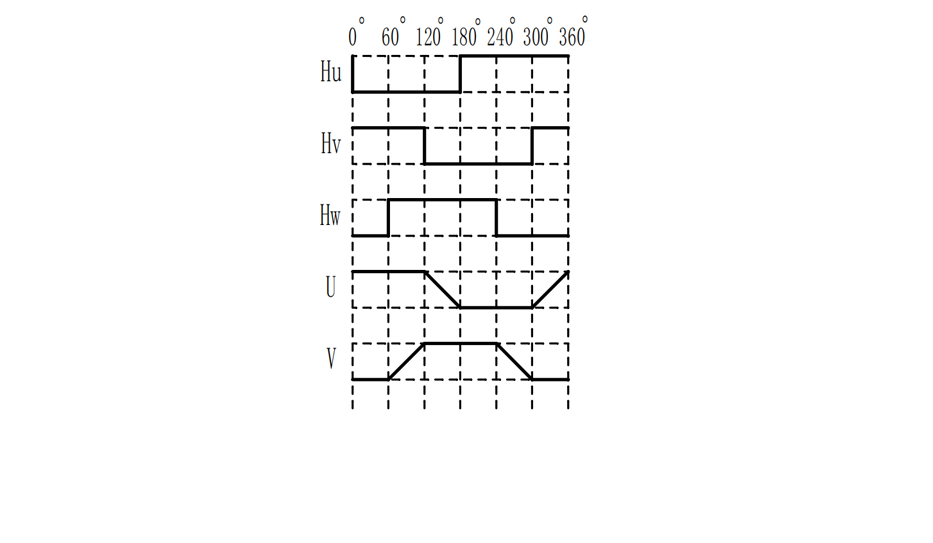

NEMA 17 Brushless DC motor cable connection
