NEMA 11 STEPPER MOTOR

HEMM's NEMA11 stepper motors have optimized features, such as rare earth magnets, optimized rotors, and stators with maximum winding fill.

Contact us

NEMA 11 SQUARE STEPPER MOTOR BODY SIZE


NEMA 11 SQUARE STEPPER MOTOR CHARACTERISTIC PARAMETER

STEP ANGLE1.8°±5%
NO. OF PHASES2
RATED VOLTAGE2.3 V
RATED CURRENT1.0 A
RESISTANCE2.3 ohm±10%   AT 25°
INDUCTANCE1.9 mH±20%    AT 1kHz, 1Vrms
HOLDING TORQUE0.09 N.m(12.7 oz.in)TYP.
RUNNING TORQUE(AT --PPS)--V.DC, --A/PHASE
DIELECTRIC STRENGTH500V A.C/MIN.
INSULATION RESISTANCE100MΩ+/MIN.
INSULATION CLASSCLASS B
TEMPERATURE RISE80K MAX.
ROTOR INERTIA12 g.cm²(0.07 oz.in²)
WEIGHTAPPROX. 150g(5.25 oz)
ALLOWABLE THRUST LOAD3N
ALLOWABLE RADIAL LOAD25N(ON THE SHAFT END)
OPERATION AMBIENT TEMP.‘-20℃---+50℃
OPERATION AMBIENT HUM.15%----90%
LIFE5000HOURS

NEMA 11 SQUARE STEPPER MOTOR TORQUE CURVE

SPEED VS TORQUE CURVE

MODEL: HEM-11D4001-08

LOT NO.: 060919

VOLTAGE24V.D.CSUPPLY
WINDING
CURRENT
PEAK
RMS
EXCITATIONFull step



DRIVE CIRCUITHDSD258
UNIPOLAR#BIPOLAR
INERTIA LOAD3g-cm2

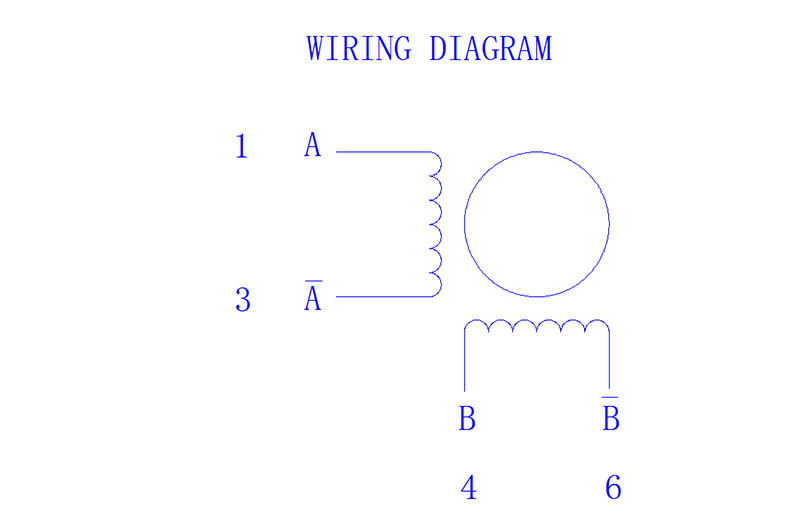

NEMA 11 SQUARE STEPPER MOTOR WIRING
